T100 System

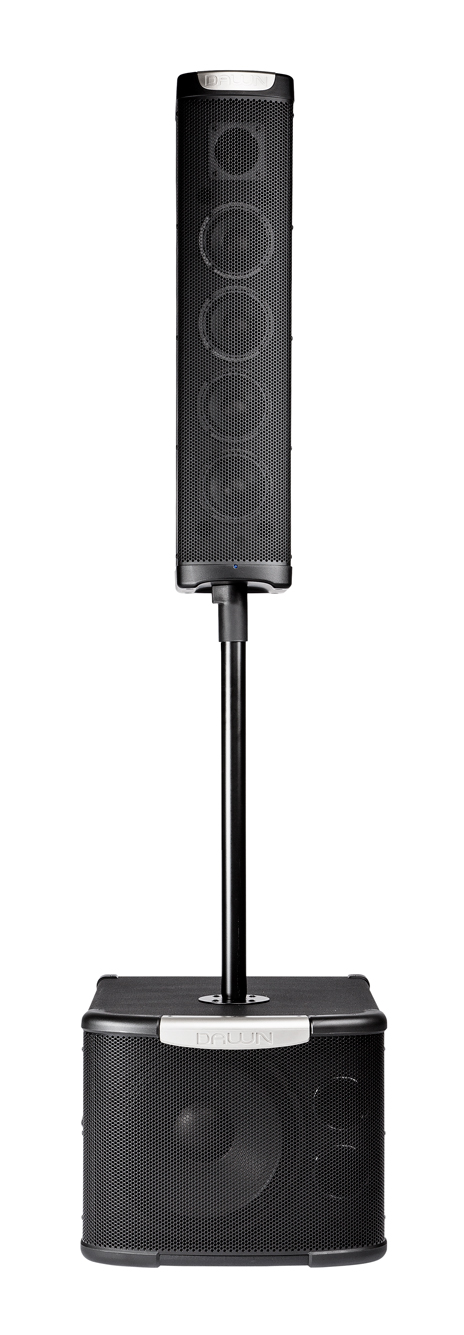

The T100 PA System is designed for use in mid-sized environments such as banquet halls, hotel ballrooms and houses of worship. This portable and easy-to-setup system pairs a Dawn T100 speaker tower with our 200S subwoofer to deliver clarity and full-range sound wherever you go. For larger environments, our unique System Link feature allows you to instantly expand your system with additional T100 speaker towers. System IncludesT100 Tower 200S Subwoofer Speaker PoleWarranty3 Year Limited Lifetime Warranty
Available with
Specifications
T100 Speaker Tower
OUTPUT POWER |
100W RMS |
CHANNELS |
3 |
INPUTS |
2 x XLR, 2 x line-level 1/4", 1 x 1/8" Headphone/line level stereo (mixed mono) |
HUM AND NOISE |
--66dB - Residual Noise, All level controls 0% (minimum) -48dB - Nominal System Noise, all level controls at 50% |
SYSTEM GAIN |
+70dB - Mic to Speaker Output (CH 1 & 2) +56dB - Line to Speaker Output (CH 1 & 2) +42dB - AUX In to Speaker Output (CH3) |
CHANNEL EQ |
(HIGH, LOW) 4kHz and above, 800Hz and below |
SYSTEM LINK (IN AND OUT) |
Balanced input (sends a pre-master volume output mix of channels) for linking up to four T100 units |
SUBWOOFER OUT |
Line Out 20Hz-150Hz |
PHANTOM POWER |
+15V to Mic Inputs (CH 1 & 2) |
SPEAKERS |
TWO 4/12", 50W, 4 Ohm each |
HORN |
1" Compression Driver, 20W Neodymium Magnet, Phenolic diaphragm |
FREQUENCY RESPONSE |
65Hz - 20kHz Full Range 150 Hz - 20kHz Crossover Active with Subwoofer |
NORMAL IMPEDENCE |
4 Ohms |
200S Subwoofer
OUTPUT POWER |
200W RMS |
INPUT JACKS |
1 x line-level 1/4" |
OUTPUT JACKS |
1 x line-level 1/4" |
SPEAKER |
-1 X 12" Dawn Design |
FREQUENCY RESPONSE |
35 - 150 Hz |
SENSITIVITY |
96dB (watt/meter) |
Overall System
WEIGHT |
60 lbs. |
